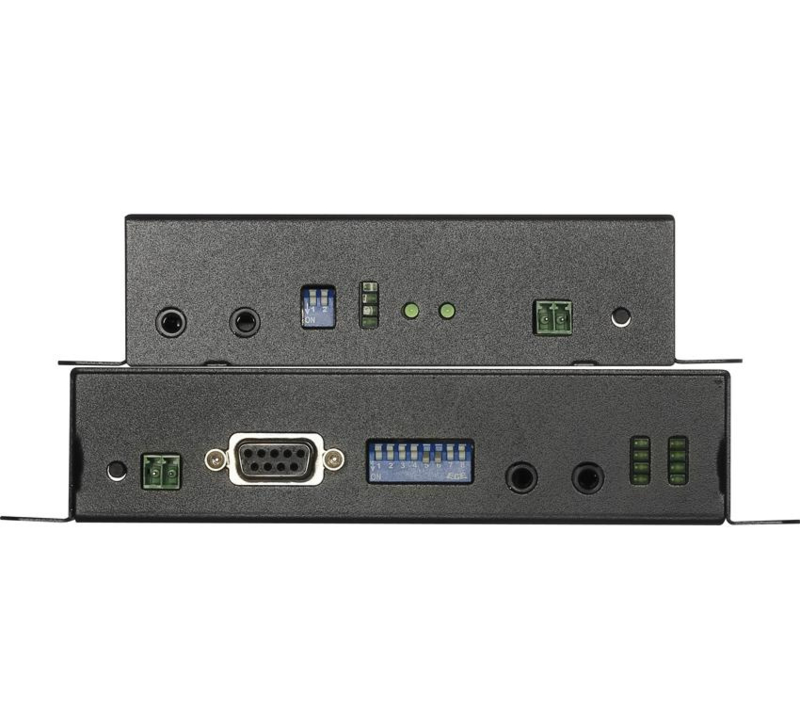

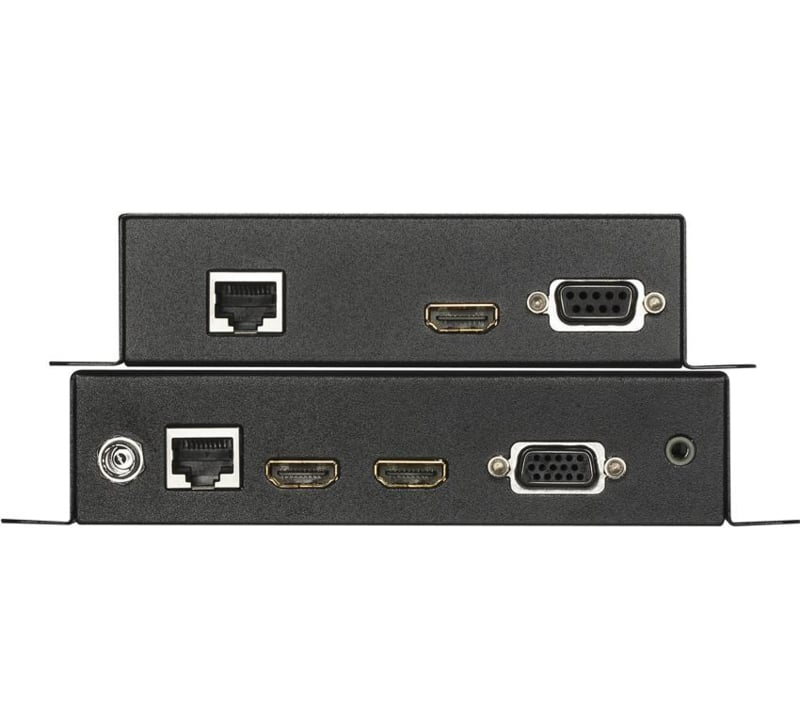

AV-Link VH-EXWB
SKU: 210031
Supports BOTH Digital AND Analoge signal extension up to 100 meters and up to ULTRA HD 4Kx2K resolution!
HDCP Compliant
Supports 3D pass-through
Support RS-232 (Bi-direction transfer)
Supports all frequency band IR control
One single CAT.x cable extension for easy installation
Extension up to 100 meters with zero compression
Supports Digital signal (HDMI) up to ULTRA HD 4Kx2K resolution
Supports Analoge signal (VGA) up to 1920 x1200 resolution
HDBaseT technology
Supports Power over Cable functionality
Under / Over-voltage and Thermal Protection
Short-Circuit Protection with Auto-Restart
| Function | Local | Remote |
| HDMI In Connector | HDMI A-Type Female x 1 | None |
| HDMI Out Connector | HDMI A-Type Femalex1(DA) | HDMI A-Type Female x 1 |
| VGA In Connector | HD-15 Female x 1 | |
| RJ-45 Connector | 1 | |
| IR OUT | 3.5φ Stereo Jack x 1 | |
| IR2 IN | 3.5φ Stereo Jack x 1 | |
| Source select (TAC Switch) | TACT SW X1 | |
| Source select (TB) | 1X2 Pole Captive Screw | |
| Max. Resolution | ULTRA HD 4Kx2K | |
| FW Upgrade Switch | 8 PIN DIP Switch | 2 PIN DIP Switch |
| Mode select Switch | None | |
| Cable Distance | 100 m (Max.) | |
| Power Adapter (Min.) | DC 48V with lock | |
| Housing | Metal | |
| Weight | 550g | 324g |
| Dimensions (LxWxH) | 171x120x35 mm | 150x80x35 mm |
