AV-Link HX-1542W HDMI Switcher
SKU: 210026
Overview
- 4 HDMI inputs and 2 HDMI outputs matrix
- Support high-resolution display up to 4Kx2K@60Hz (YCbCr 4:2:0 8/10/12/16-bit, RGB/ YCbCr444 only 8-bit)
- Supports 3D pass-through
- HDCP2.2/HDCP1.4 Compliant
- EDID Copy from OUT port 1
- Supports IR remote control
- Supports RS-232 control
| Hardware | |

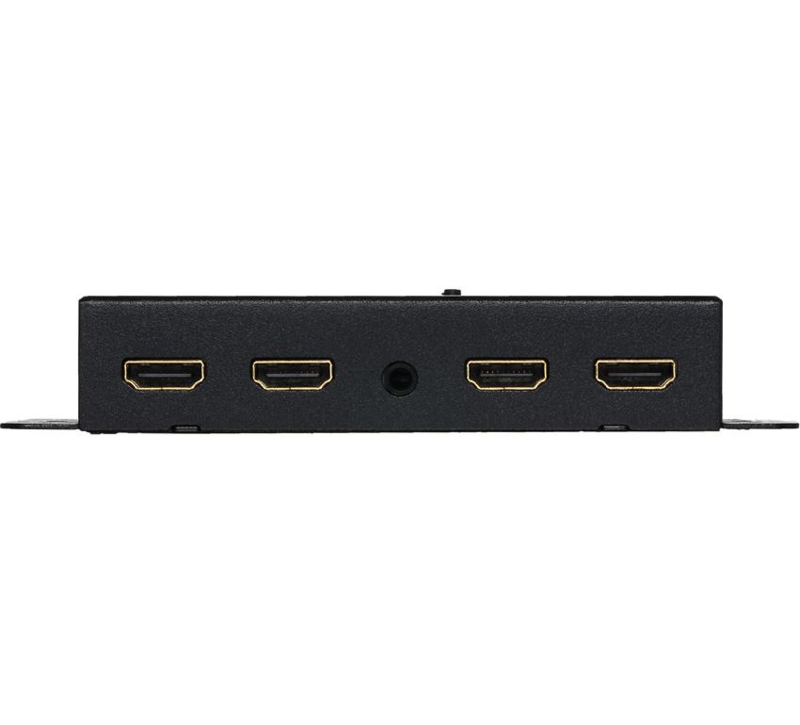

| Input Connector | HDMI Type A Female x 4 |

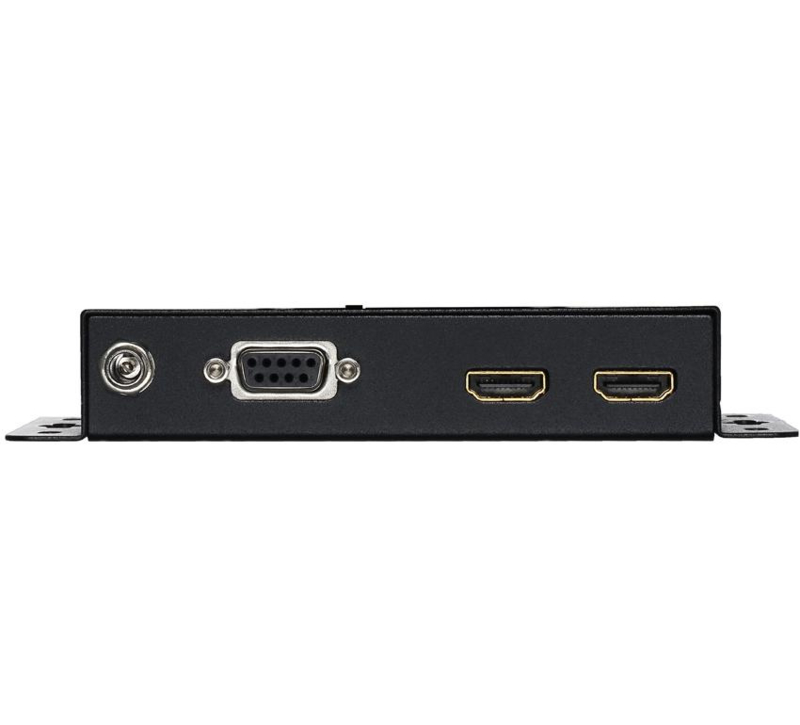

| Output Connector | HDMI Type A Female x 2 |
| IR In | 3.5ψ Stereo Jack x 1 |
| RS-232 Connector | 9 Pin Female D Type Connector |
| Baud Rate | 9600 bps; 8 data bits, 1 stop bit, no parity |
| 8 pins Dip Switch | 1 |
| Max. Resolution | 4K x 2k |
| Power Adapter (Min.) | DC 12V with Lock |
| Housing | Black Aluminum |
| Dimensions (LxWxH) | 150 x 80 x 25 mm |
| Weight | 296g |
