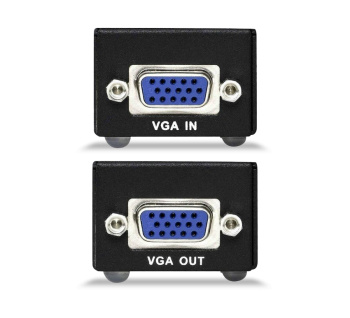

AV-Link VGA-E80
SKU: 210030
Overview
- The extension of VGA signal is up to 80 meter away by using the VGA Extender and one CAT.5 cable.
- Equalization length is adjustable.
- VGA signal gain is adjustable.
- Support "power over cable" technique, only one unit (Local or Remote) need to connect to power.
- Both "Local" and "Remote" can act as the PSE (power source equipment).
| Function | VGA-E80 |
| VGA In/Out Connector | HD-15 Female x 1 |
| RJ-45 Connector | 1 |
| Max. Resolution | 2048x1536 60Hz |
| Cable Distance | 80 m (Max.) |
| Power Adapter (Min.) | DC 12V 600mA |
| Housing | Metal |
| Weight | 135g |
| Dimensions (LxWxH) mm | 92x34x22 |
