AV-Link VGA-E+ PRO
SKU: 210029
Overview
- Through the VGA Extender, you can use one PC to display identical image and extension of VGA signal up to 180/300 meter on monitors.
- Equalization length is adjustable.
- VGA signal gain is adjustable.
Function | VGA-E+-PRO |

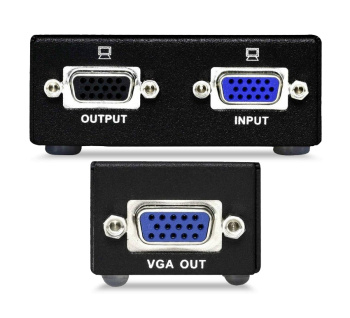

VGA In Connector | HD-15 Female x 1 |
VGA Out Connector | HD-15 Female x 1 |

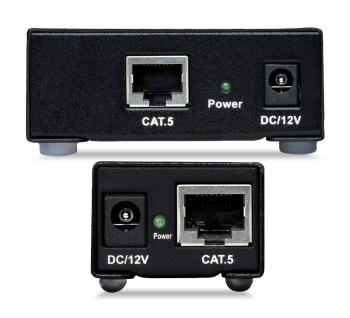

RJ-45 Connector | 1 |
Max. Resolution | 2048x1536 60Hz |
Cable Distance | 300 m (Max.) |
Power Adapter (Min.) | DC 12V 600mA |
Housing | Metal |
Weight | 290g |
Dimensions (LxWxH) mm | 118x75x29 |
