AV-Link HDMI-FXW
SKU: 210023
Overview
- Through the HDMI Extender, you can use one DVD to display identical image and extension of HDMI signal up to 100 meter on HDTV
- HDCP Compliant
- Supports Power over Cable
- Supports 10/100 base-T Ethernet switcher(Compliant IEEE802.3, IEEE802.3u, IEEE802.3x)
- 8 standard Ethernet port (with switching capabilities on each unit.
- Supports IR/RS-232/Ethernet extension function.
- IR extension function(Supports all frequency band IR control)
- Supports 3D pass-through
- Supports CEC pass-through
- Support RS-232(Bi-direction transfer)
- One CAT.5 cable extension
- Supports HDTV up to 1080p
- HDBaseT technology
- Use CAT.5 cable to install easily

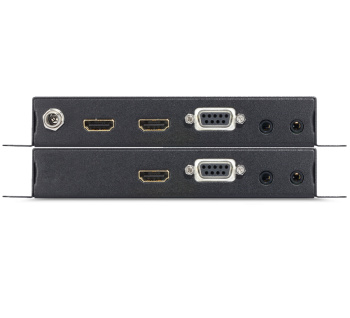

| Function | HDMI-FLW | HDMI-FRW |
| HDMI In Connector | HDMI A-Type Female x 1 | None |
| HDMI Out Connector | HDMI A-Type Female x 1 (By pass) | HDMI A-Type Female x 1 |

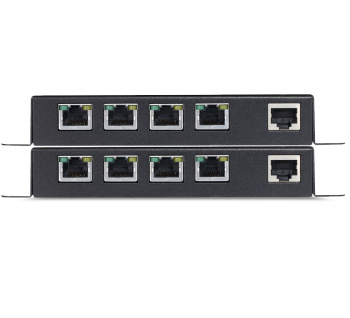

| RJ-45 Connector | 1 |
| RJ-45 Connector(with LED) | 4 |
| RS-232 Connector | 1 |
| IR OUT | 3.5φ Stereo Jack x 1 | 3.5φ Stereo Jack x 1 |
| IR IN | 3.5φ Stereo Jack x 1 | None |
| IR1 IN | None | Internal IR receiver |
| IR2 IN | None | 3.5φ Stereo Jack x 1 |
| Max. Resolution | 4K2K |
| Cable Distance | 100 m (Max.) |
| Power Adapter (Min.) | DC 48V with lock | None |
| Housing | Metal |
| Weight | 505g | 505g |
| Dimensions (LxWxH) | 171x120x25 mm |
