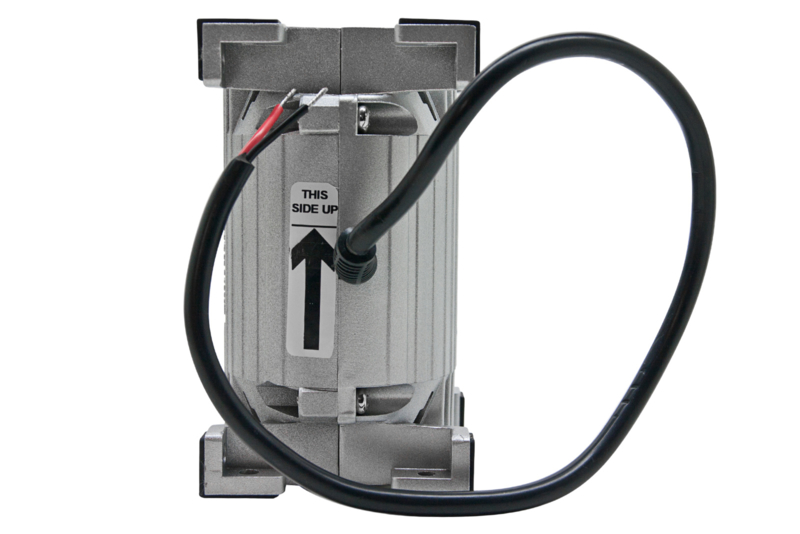

Earthquake QUAKE Q10B – TACTILE TRANSDUCER

SKU: 210044

Item 9 of 17

Earthquake QUAKE Q10B – TACTILE TRANSDUCER

€ 469,⁰⁰ (excluding VAT)

Quake 10.0 - a unique tactile transducer
Quake 10.0 is an awe inspiring tactile transducer, designed to reproduce the effects of the lowest frequencies in music and movies. Quake 10.0 is sensitive, articulate and renders even the most complex low frequency material in every detail. It is so powerful that it can even replace traditional hydraulic platforms in theme parks.

With Quake 10.0 is it possible to control the spread of LFE effects, this is especially useful if your surroundings do not permit high volume audio. When the Quake 10.0 is installed on your home theater or music chair, its outputs remain in the chair. It is also possible to mount it on a platform and thereby provide power for multiple seats Quake 10.0 is designed for superior music reproduction. It combines precise, quick and articulated low-frequency response with maximum tactile effect. Seeing movies with a quake 10.0 adds a new dimension that you do not want to be without.

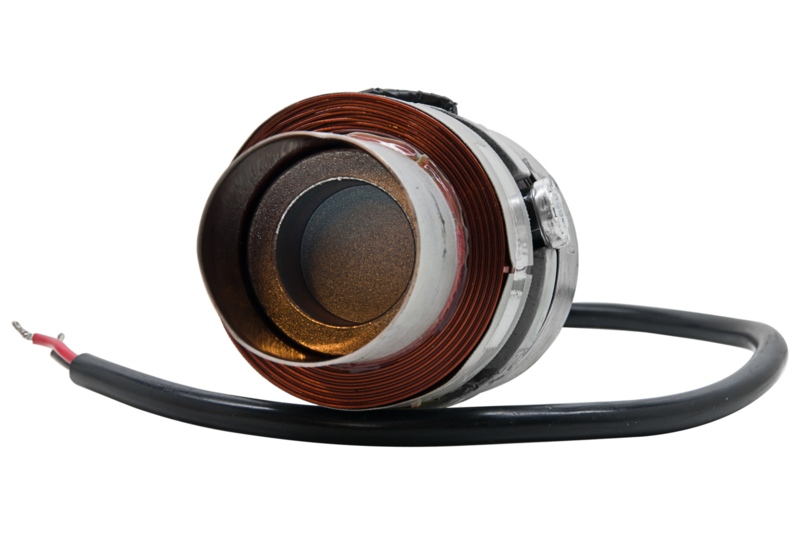

The Quake 10.0 motor system is built around ultra high-gauss neodynium magnets and a military grade flat wire voice coil. Quake 10.0 can produce 5 cm of earthquake inducing stroke and response as low as 5 hz.

Power that will shake your senses.

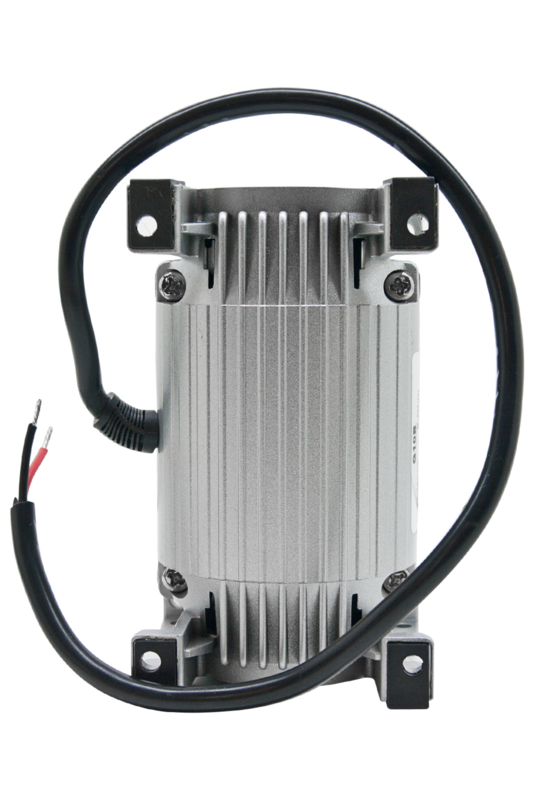

One Quake 10.0 can easily replace 5 traditional shakers and provide tactile power for 5 cinema chairs. With only one moving part Quake 10.0 is maintenance free. The chassis is a large heat sink made of cast aluminum, making it capable of extremely high performance. Universal mounting options are designed into the chassis. Quake 10.0 has a power handling capability of 1000 watts, yet it is so effective that an amplifier of 300 watts is plenty for private use.

How exactly does a tactile transducer work?
A tactile transducer or "bass shaker" is a device constructed according to the principle that subsonic bass frequencies can be felt as well as they can be heard. A tactile transducer transmits the low frequency vibrations into the object it is mounted to.

A tactile transducer will usually be mounted on a couch / chair, vibrations are transferred from there to the body. This is tactile sound. Tactile transducers can supplement and sometimes replace traditional subwoofers. In situations where the environment dictates using headphones, a tactile transducer can provide the bass and impact, free of nuisance to the surroundings.

Home theater and music applications.
A tactile transducer will get its signal from the LFE output is also used by traditional subwoofers. This signal is amplified by an amplifier which drives the tactile transducer. It articulates the low frequencies effect and is very powerful and precise. The tactile transducer easily integrates with your existing subwoofer, complimenting it in the lowest frequencies.

For gaming applications.
Tactile transducers are an explosive way to generate massive amounts of vibration, which brings you right into the game world. Installation of an Earthquake tactile device on your gaming chair will give you an incredible interactive experience.
