Audac WX302MK2 Indoor Speakerset

SKU: 210018
Item 12 of 17
€ 120,00 (excluding VAT)

The WX302 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 3” low-frequency loudspeaker, capable of delivering a power of 30 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 20 Watt, 10 Watt and 5 Watt. The elegant shaped synthetic enclosure is available in two different colours (black and white), making it blend into any environment going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.

This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin).. Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.

SYSTEM SPECIFICATIONS

Impedance8 Ω
Ingress Protection ratingIP40
Max. Power
60 W
Sensitivity (1W/1m)85 dB
Speaker type2-way
RMS Power30 W
CrossoverFrequency2.5 kHz
 TypePassive built-in
DriversHF1”
 LF3”
FrequencyRange (-10 dB)60 Hz - 20 kHz
 Response (± 3 dB)90 Hz - 18 kHz
Line Transformer Tappings120 W / 500 Ω
 210 W / 1000 Ω
 35 W / 2000 Ω
Sound Pressure (Max. W/1m)@ 100 V95 dB
 @ 8 Ω100 dB
DispersionHorizontal100°
 Vertical100°

PRODUCT FEATURES

Dimensions199 x 129 x 120 mm (W x H x D)
Weight1.660 kg
Operating temperature-25 °C ~ 70 °C
ConstructionABS
Mounting & handlingMounting bracket
Front finishAluminium grill

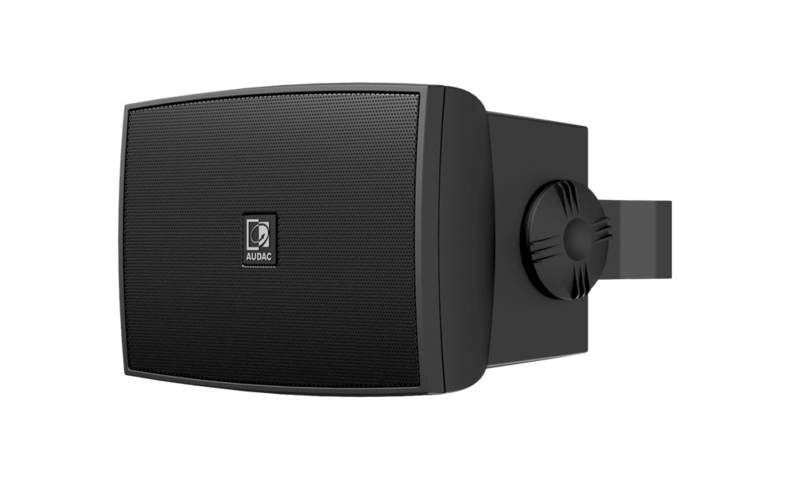

ColoursBlack (RAL9005) (WX302MK2/B)

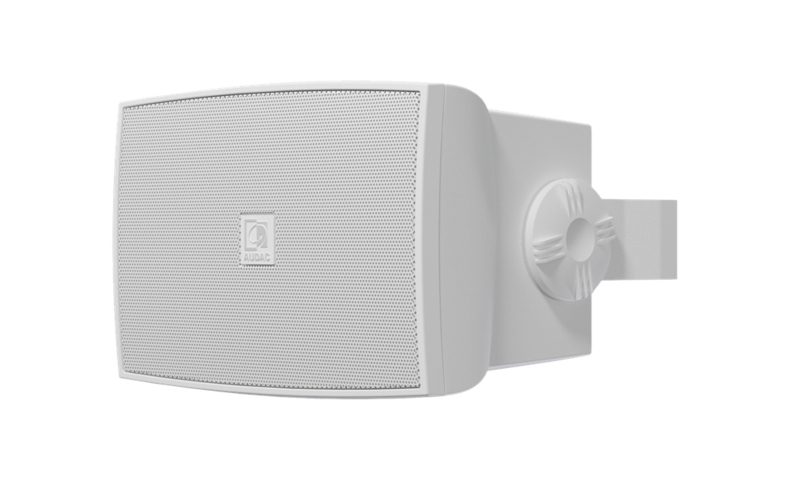

 White (RAL9003) (WX302MK2/W)
AccessoriesIncludedMounting bracket
