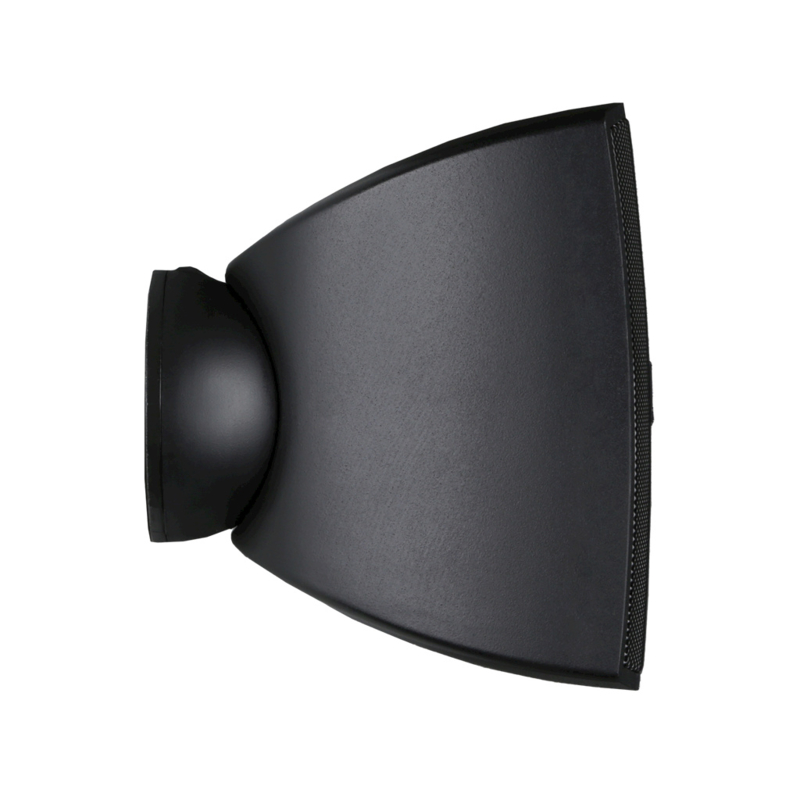

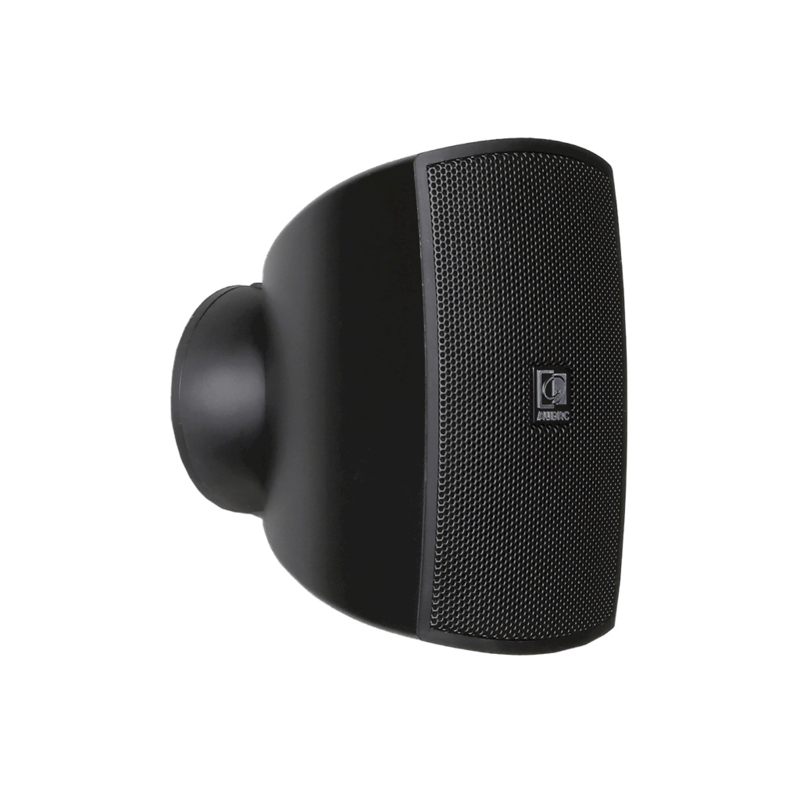

Audac ATEO2 8Ω Speakerset

SKU: 210011
Item 16 of 17
€ 85,00 (excluding VAT)
Overview

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO2 is the ultra-compact model of this series which smoothly integrates into any interior like no other loudspeaker. The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design. This way, smooth sound reproduction with clear and crisp sound is guaranteed.

The internal self-resetting network provides optimal overload protection. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity.

The mounting and connection of the loudspeaker are done by mounting the wall-plate to the desired location. The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers’ side. The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until it's fixed.

SYSTEM SPECIFICATIONS
Speaker typeFull range
Max. Power20 W
RMS Power10 W
Impedance8 Ω (ATEO2)
 16 Ω (ATEO2D)
Sensitivity (1W/1m)83 dB
Sound Pressure (Max. W/1m)93 dB
Ingress Protection ratingIP40
Connectors2-pin Euro Terminal Block
Drivers2” Aluminium full range
Incline angleLeft25°
 Right25°
 Bottom25°
 Top15°
FrequencyResponse (± 3 dB)120 Hz - 20 kHz
 Range (-10 dB)100 Hz - 20 kHz
DispersionHorizontal145°
 Vertical170°
PRODUCT FEATURES
Dimensions80 x 136 x 115 mm (W x H x D)
Weight0.390 kg
Operating temperature-20 °C ~ 60 °C
MountingClevermount™
ConstructionABS
Front finishSteel grill

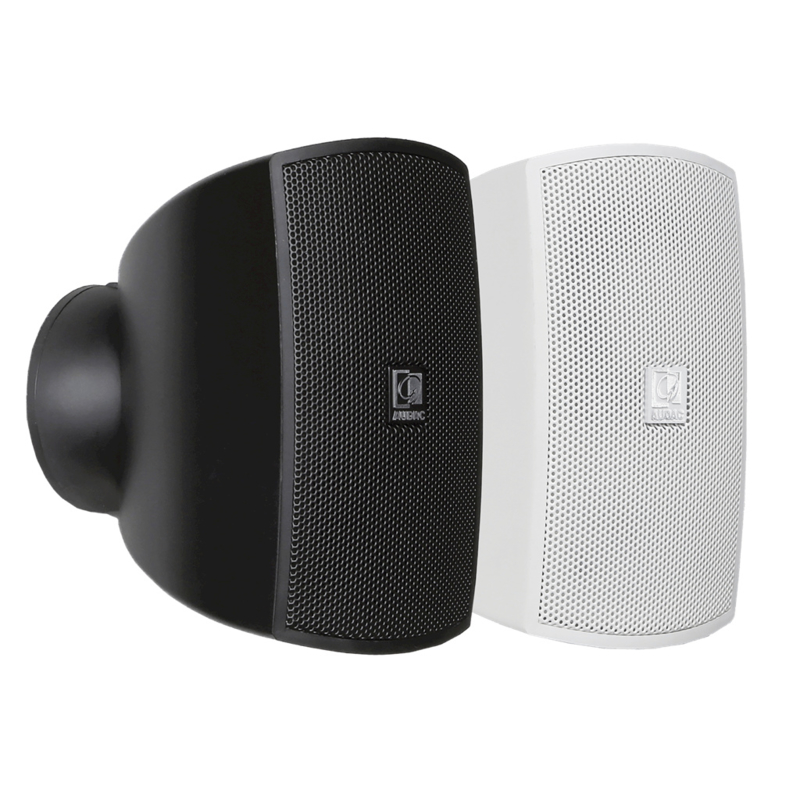

ColoursBlack (RAL9005)

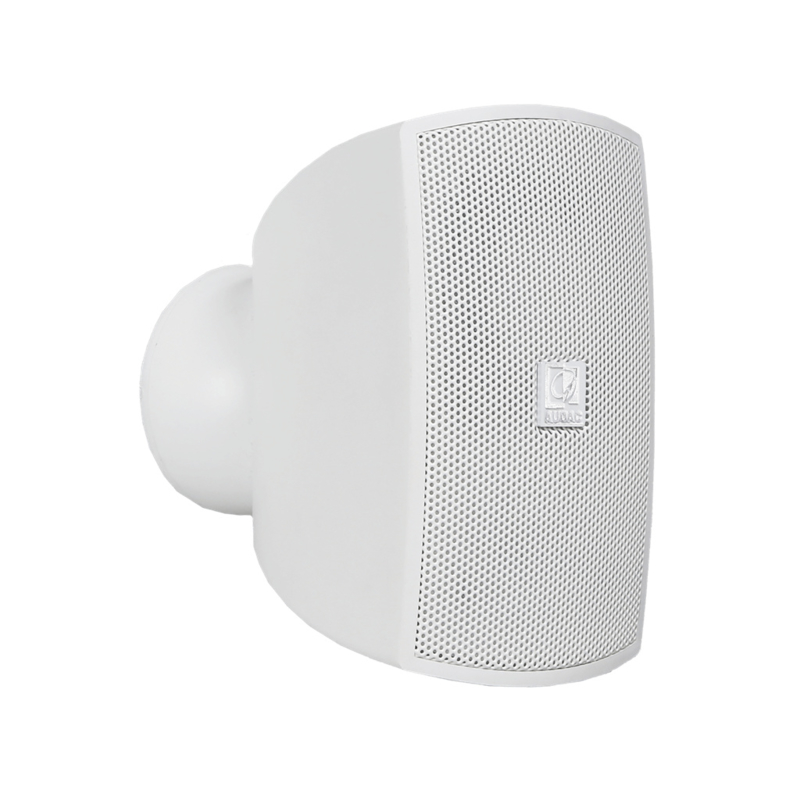

 White (RAL9003)
