ID-AL SensoPad Touch-sensitive Button

Description

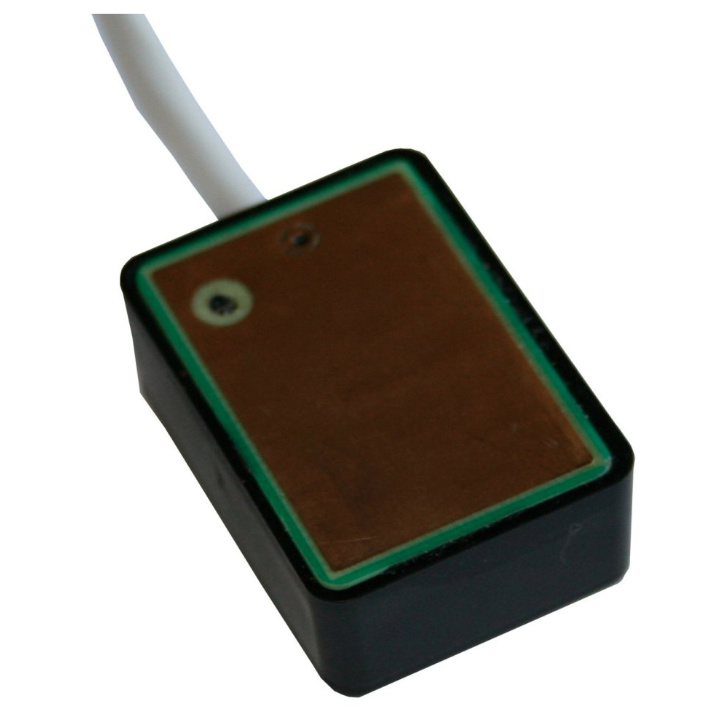

The Senso PAD is a touch-sensitive button that allows the triggering, through a material, of playback files thanks to an input contact.

As an example the touch-sensitive button Senso PAD can play audio or video files of the players of the range ID-AL.

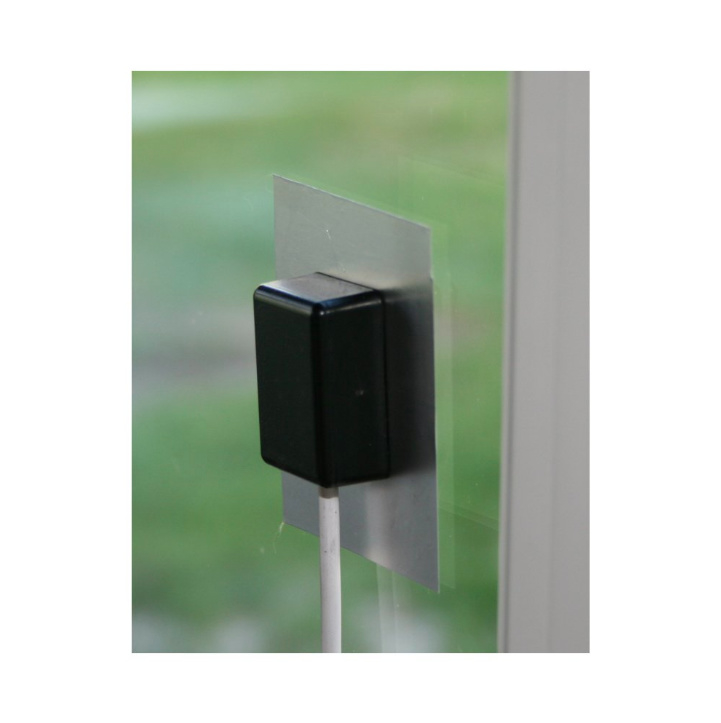

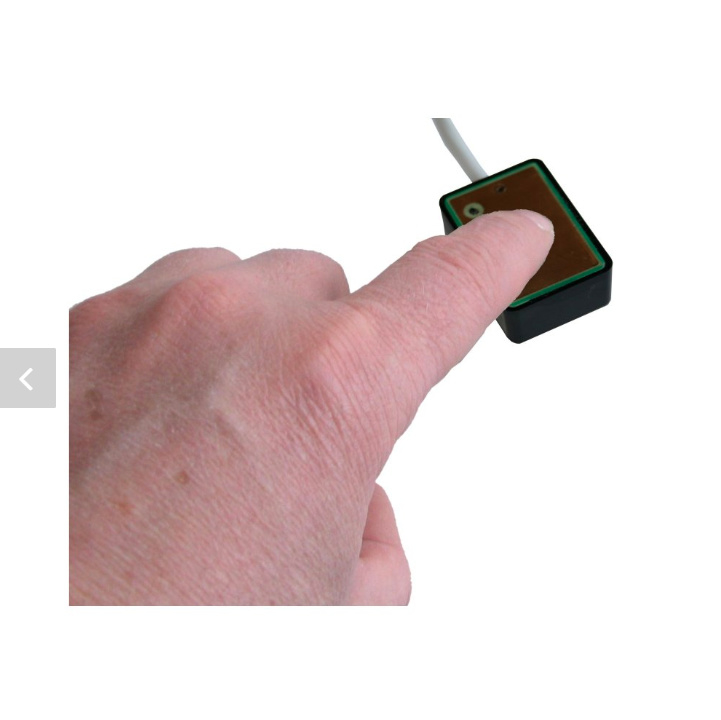

The Senso PAD is a proximity touch sensor that is not requiring a direct contact. Stuck onto an insulating surface, the presence of a finger is detected through the material (wood, glass or any insulating materials).

The reach of detection relies on the size of the electrode (that allows a detection up to 2 cm) and on the kind of support.

The SensoPad is an invisible touch-sensitive button onto wood and makes a glass surface become interactive.

Detection technology

• Touch sensor type: capacitive switch
• Compatible contact surfaces (dielectric material types): plastic, glass, stone, ceramic, composites, most kinds of wood, painted surfaces (low particle density metallic paints possible)
• Contact surface thickness: up to 12 mm glass or up to 6 mm plastic (depend of the additional sticker-electrode size)
• Full recalibration when detection more than ~60 seconds

Interfacing and Connectivity

• Status LED
• 180 cm (⌀ 3.5 mm) connection cable with 4 stripped ends:
  • Ground (black and blue)
  • Power (red)
  • Output (yellow)

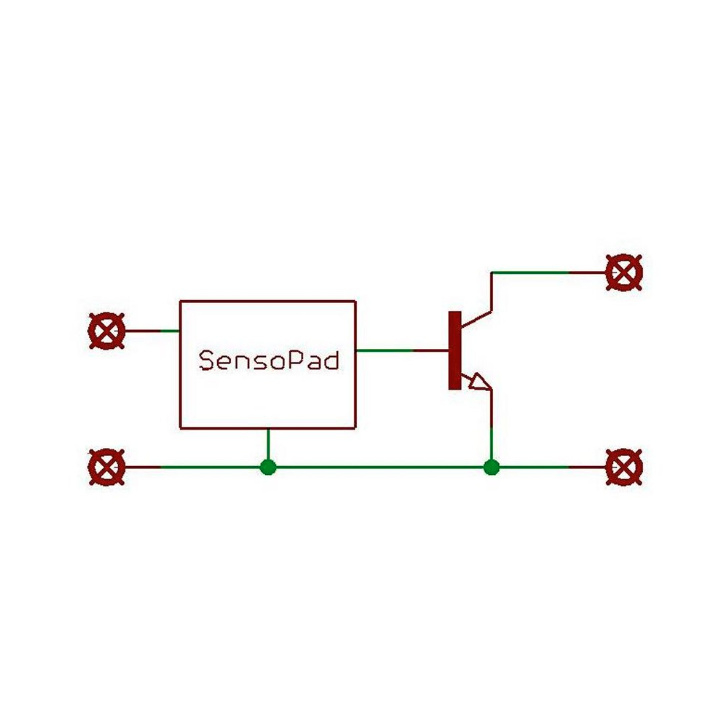

• Open collector output (NO) – 50 V / 100 mA
• Fixing type: sticker
• Optional self-adhesive electrode provided – Cutting at will in different sizes and shapes

Power Supply

• Power supply input:
  • Nominal voltage: 12 V DC
  • Power supply range: from 5 V to 20 V DC

Current Consumption (12 V supplied)

• Consumption out of presence detection: < 750 μA
• Consumption in presence detection – unloaded: < 2 mA

Thermal Information

• Operating ambient temperature: from -40 to +85 °C

Dimensions

• Case:
  • Width: 24 mm
  • Height: 34 mm
  • Depth: 13 mm

Weight

• 52 g (with its cable)
