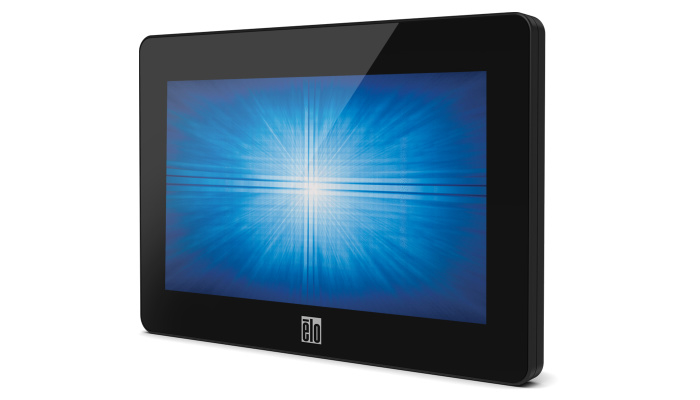

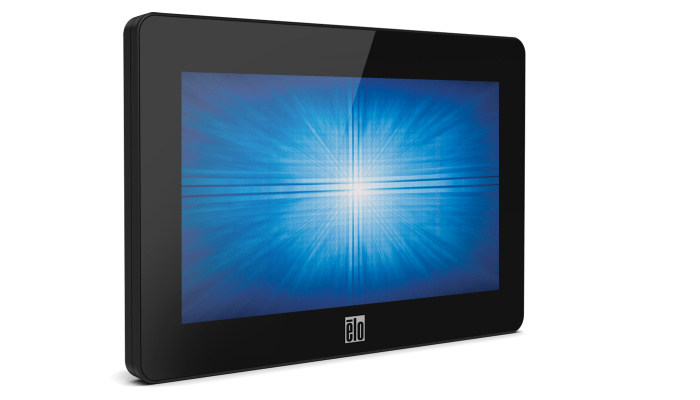

ELO 7 inch Touchscreen Monitor (0700L)
SKU: 210064
Overview
The Elo 0700L 7-inch widescreen touchscreen monitor is designed to serve as a multi-functional unit with cost and space savings in mind. Whether used as a stand-alone or secondary display attached to a larger device, the 0700L can be applied to any environment, especially where a small screen is required. The 0700L is available with AccuTouch® five-wire resistive touch technology.
Streamlined functionality.
The 7-inch display utilizes DisplayLink™ technology that allows for power, video and touch signal through a single USB cable.
Endless options.
The small format 0700L can serve as a second customer-facing display in retail environments, a main display for applications requiring a small screen or an end-cap shelf display, or as a personal gaming screen that is part of a larger interactive gaming table.
Retail ready.
The optional web camera or three-track magnetic stripe reader (MSR), programmable to either HID or keyboard emulation (USB only) offer easy installation by the user, providing an elegant, integrated solution.
Commercial grade.
The 7-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- DisplayLink™ technology allows for power, video and touch signal through only one USB cable
- USB cable
- Up to 800 x 480 60 Hz
- VESA mounting option
- Factory sealed against dirt and dust
- Worldwide agency approvals
- Three-year standard warranty
Specifications
Part Number(s) | AccuTouch (Worldwide) - E791658 |
Enclosure Color | Black |
Touch Technology & Capacity | 5-Wire Resistive (AccuTouch®) - Single-Touch |
Diagonal Size | 7'' diagonal, Active matrix TFT LCD (LED) |
Aspect Ratio | 16:09 |
Active Area (mm) | 6.0" x 3.4" / 154mm x 87mm |
Resolution | 800 x 480 60 Hz |
Viewing Angle | Horizontal: ±70° or 140° total / Vertical: -60°/+50° or 110° total |
Number of Colors | 16.7 million |
Brightness (typical) | LCD panel: 200 nits |
| AccuTouch: 160 nits | |
Response Time-total (typical) | 25 msec |
Contrast Ratio | 500:01:00 |
Speakers | No Speakers |
Input Video Format | USB on Mini-B receptacle |
Input Video Frequency | Horizontal: 30KHz |
| Vertical: 60 Hz | |
Power Consumption (Typical) | Monitor Only |
| ON: 4.5W | |
| SLEEP: 2.59W | |
| OFF (backlight off): 2.59W | |
Power Supply | DC (through USB) |
Input Voltage | Monitor: 5 V ±5% |
Input Connector | AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length) |

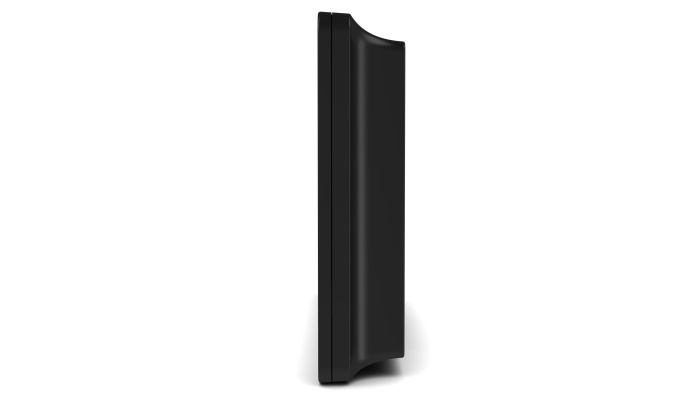

Monitor Dimensions (without Stand) | 7.4" x 4.9" x 1.2" / 189mm x 126mm x 31mm |
Shipping Box Dimensions | 8.5" x 6.4" x 3.1" / 225mm x 165mm x 80mm |
Weight (without stand) | 1.3 lb / 0.59 kg |
Weight (Packaged) | 1.9 lb / 0.87 kg |
Operating Temperature | 0°C to 40°C / 32°F to 104°F |
Storage Temperature | -20°C to 60°C / -4°F to 140°F) |
Humidity | Operating: 20% to 80%; Storage: 10% to 90% |
Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
MTBF | 50,000 hours demonstrated |

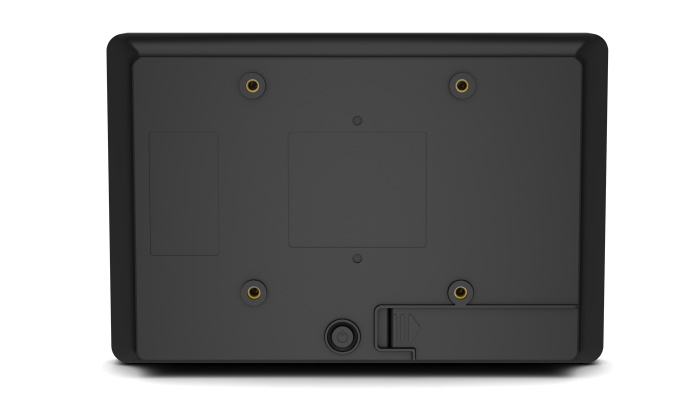

Mounting Options | VESA 4-hole 75mm mounting interface on rear of unit |
Warranty | 3-year |
Extended Warranty Options | 4 year warranty coverage - Elo P/N: E898247 |
| 5 year warranty coverage - Elo P/N: E898449 | |
| 3 year warranty coverage + AUR - Elo P/N: E898648 | |
| 4 year warranty coverage + AUR - Elo P/N: E894921 | |
| 5 year warranty coverage + AUR - Elo P/N: E895125 | |
Regulatory approvals and declarations | UL, cUL, FCC, IC, CE, VCCI, KCC, CoC, CB, RoHS, RCM, WEEE, BSMI |
What's in the Box | USB Mini-B receptacle, User Manual CD, Quick Install Guide |
