| Specification |
| Panel size | 7 inch CCTV Monitor |
| Display area | 245*285mm |
| Standard Resolution | 1024*600 |
| Number of Colors | 16.2M |
| Brightness | 350cd/m2 |
| Response time | 5ms |
| View angle | Horizontal:178° |
| Vertical:178° |
| Contrase ratio | 500:01:00 |
| Video input format | (analog) RGB |

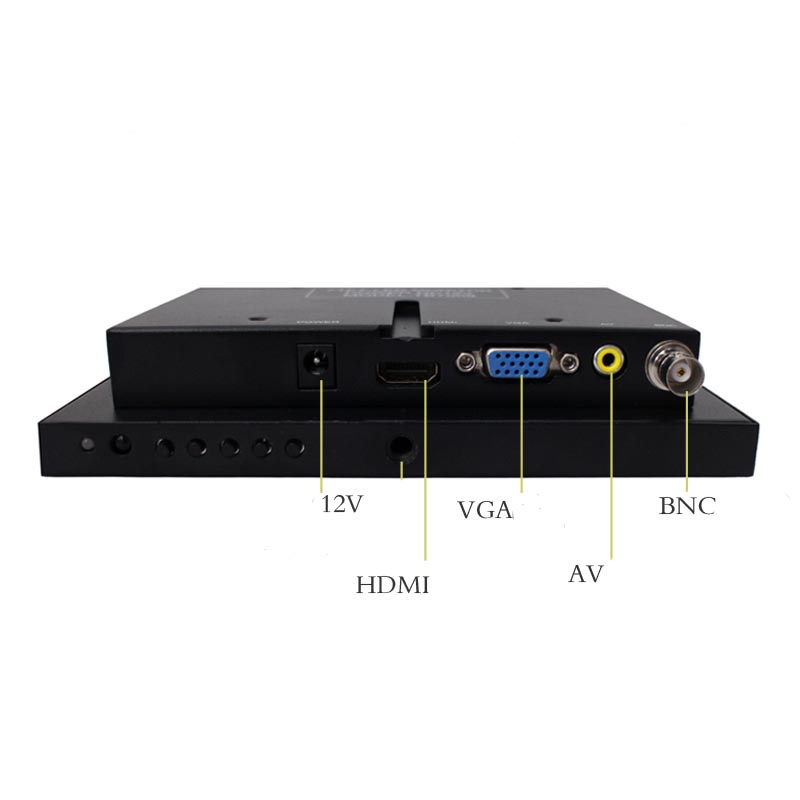

| Connector | VGA/HDMI/AV/BNC for video signal |
| Frequency | 30~80KHz/60~75Hz |
| Power supply | External Power Supply:100 to 240V (DC 12V) |
| Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
| Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% |
| Duration | 50000hours |
| Net weight | 3.0 Kgs/pcs,include stable mental base |
| Gross weight | 4.5 Kgs/pcs,include stable mental base |
| Power consumption | Max 30W |
| Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| 2) provide stable mental base to support the monitor |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset |
| Certificate | CE |
| Warranty | 2 years |
| Monitor size(not include base) | 300*245*44mm |
| Each unit box size | 340*140*300mm |
| Package size | 10pcs in a carton,carton size:650*450*410mm |
| Operation system | Windows/Linux/Android ect |
