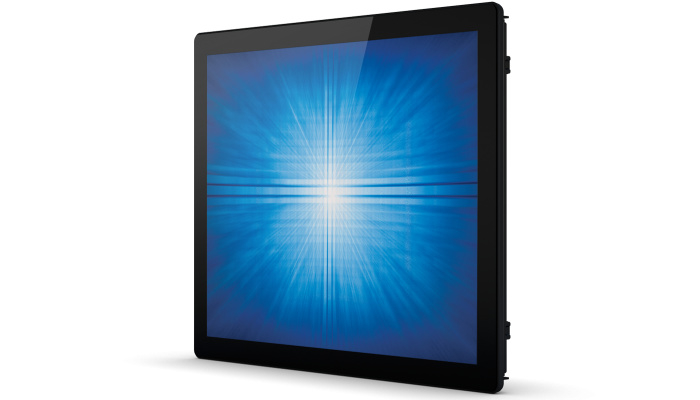

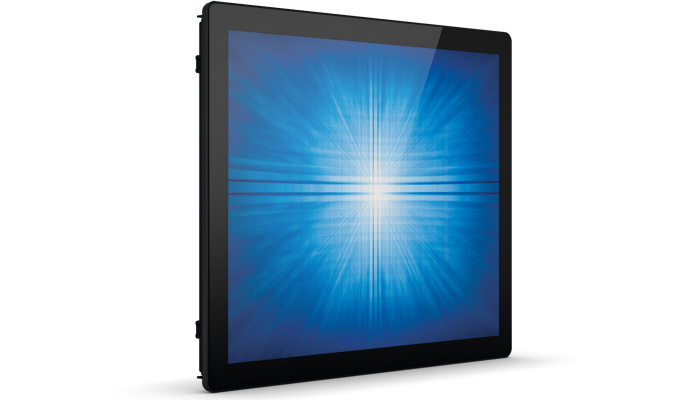

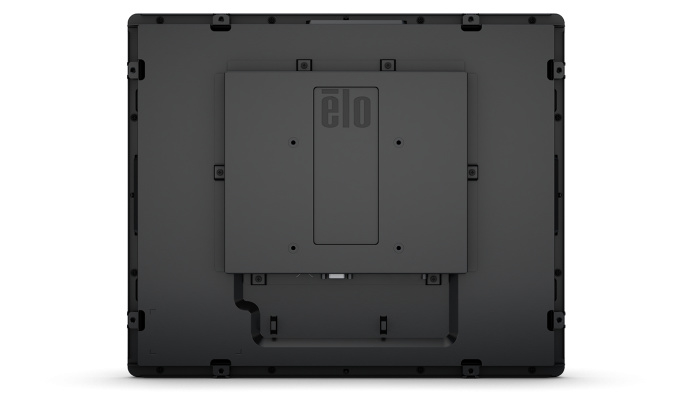

ELO 1991L 19" Open Frame Touchscreen Projected capacitive

SKU: 210053
Vorige Item 11 of 22 Volgende
€ 640,00 (excluding 21% VAT)

OVERVIEW

The Elo 1991L 19-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the 1991L instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

EASILY INTEGRATED.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

TOUCH READY.

The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

COMMERCIAL-GRADE.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.



Active Area (mm)

376mm x 301mm

Aspect Ratio

5:4

Brightness

LCD panel: 250 nits

Brightness (typical)

PCAP: 225 nits

Contrast Ratio

1000:1

Diagonal Size

19"

Dimensions

PCAP: 420mm x 348mm x 41mm

Enclosure Color

Black

Humidity

Operating: 20% to 80% Storage: 10% to 95%

Input Video Format

Analog VGA, DisplayPort V1.1a - Supports later versions of Display Port video input, HDMI

Input Voltage

12VDC +/- 5%

MTBF

50,000 hours demonstrated

Power Consumption (Typical)

Monitor + Adapter at 230V/50Hz ON: 16 W SLEEP: 1.5 W OFF: 0.5W

Power Supply

External DC - Optional power brick (sold separately)

Resolution

1280 x 1024

Shipping Box Dimensions

526mm x 450mm x 190mm

Technology

Projected Capacitive

Warranty

3-year

Weight

4.6 Kg
