18.5" Flat Screen Touch Monitor (Vandal proof metal frame) Projected capacitive
SKU: 210002
Specification | |
General | |
Series | FLAT Screen |
LCD Type | 18.5” Active Matrix |
Video Input | VGA and HDMI |
OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,Languages, Function, Reset |
Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Output voltage/current: 12 volts at 4 amps max |

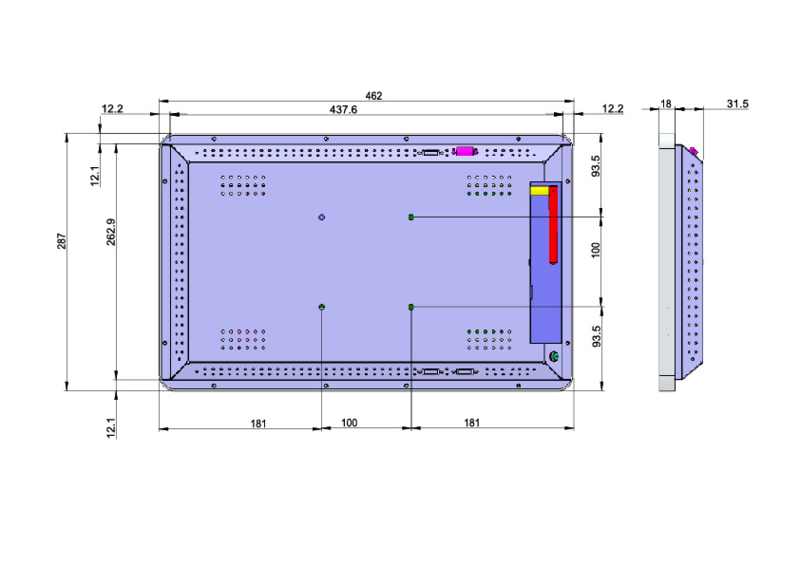

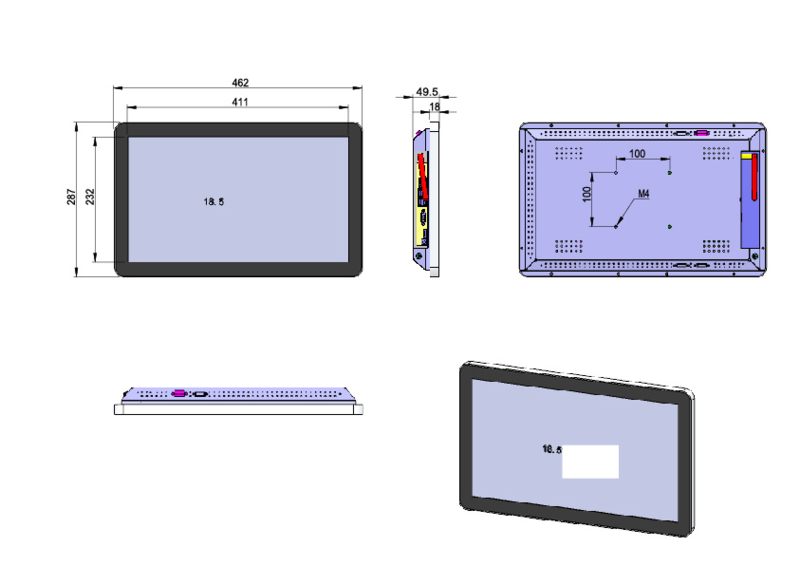

Mount Interface | 1)VESA 75mm and 100mm |
| 2)Mount bracket, horizontal or vertical |
LCD Specification | |
Active Area(mm) | 410(H)x230mm(V) |
Resolution | 1366x768@75Hz |
Dot Pitch (mm) | 0.264×0.264 |
Nominal Input Voltage VDD | +5.0V(Typ) |
Viewing angle (v/h) | 85°/88° |
Contrast | 1000:1 |
Luminance(cd/m2) | 1000 |
Response Time(Rising) | 5s/5s |
Support Color | 16.7M |
Backlight MTBF(hr) | 30000 |
Touchscreen Specification | |
Type | Projected Capacitive touch screen |
Multi Touch | 10points touch |
Touch Life Cycle | 10 millions |
Touch Response time | 8ms |
Touch System Interface | USB interface |
Power consumption | +5V@80mA |
External AC Power Adapter | |
Output | DC 12V /4A |
Input | 100-240 VAC, 50-60 Hz |
MTBF | 50000 hr at 25°C |
Environment | |
Operating Temp. | 0～50°C |
Storage Temp. | -20～60°C |
Operating RH: | 20%～80% |
Storage RH: | 10%～90% |
Components USB Cable 180cm*1 Pcs, VGA Cable 180cm*1 Pcs, Power Cord with Switching Adapter *1 Pcs, | |
