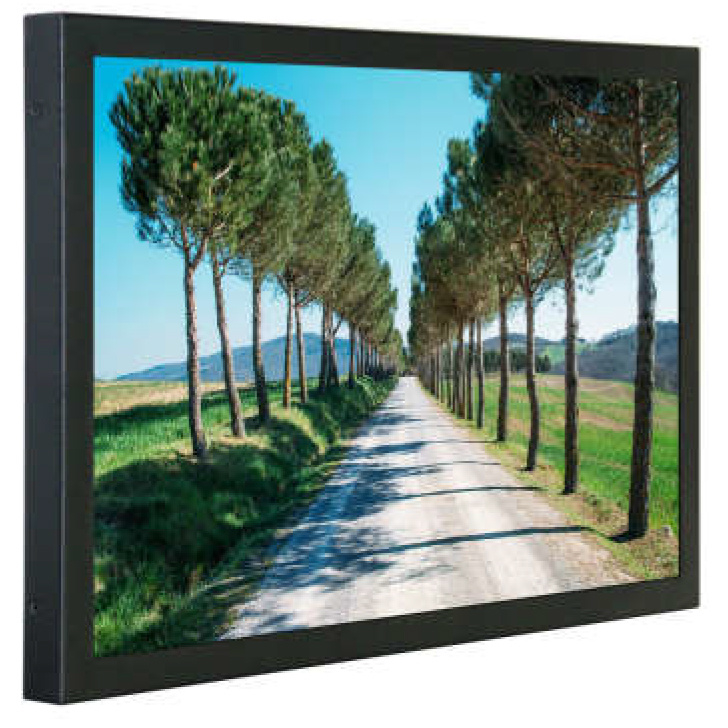

MAV Display touch 19 inch Projected capacitive
SKU: 210089
Features:
- 19inch HD LCD Monitor with VGA/DVI/HDMI input
- Professional design for 24/7 hours operation
- 500/1000/2000 nits brightness options
- Full HD (1440x900) LED Backlight
- CE, FCC, ROHS Certificates
- 1 year warranty
- Close-Frame/Open-Frame Options
- Capacitive touch screen
Panel Specifications
| Model No | RCS-191CTM |
| Panel model | 19inch TFT LCD |
| Max Resolution | 1440x900 |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.2835x0.2835mm |
| Viewing Angle | 85/85/80/80 |
| Contrast Ratio | 1000:1 |
| Brightness | 250cd/m² |
| Response Time | 5ms |
| Operation Temp | 0~50ºC |
| Panel size (mm) | 427.2x277.4x15.8mm |

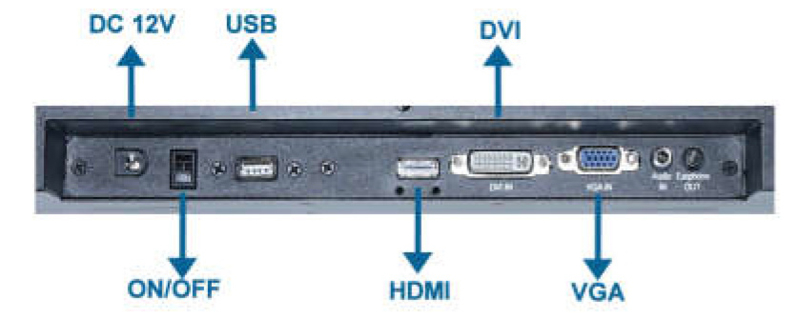

Connectors
| HDMI | x1 | Audio | 3.5mm Stereo Jack |
| VGA | x1 | Power Input | DC 12V |
| DVI | x1 | USB | x1 |

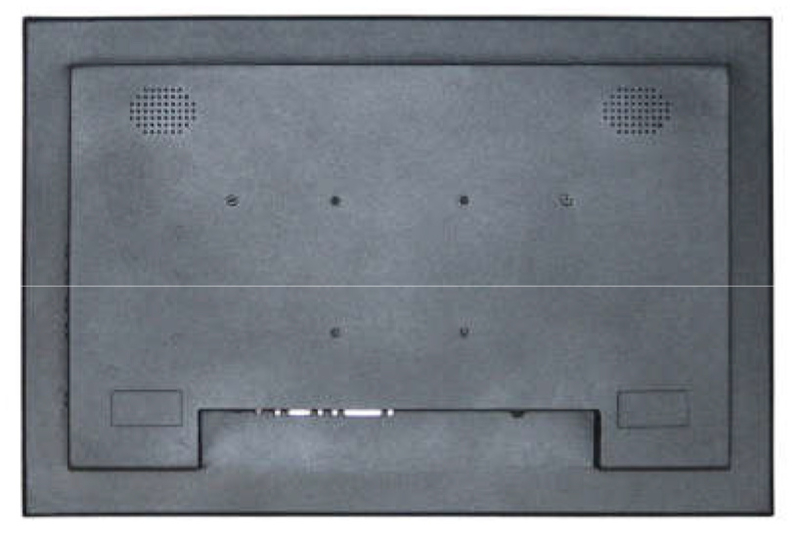

Mechanical
| Cabinet Material | Metal |
| Finish | Black |
| Mount | Wall mounting compatible with standard bracket |
| VESA Mounting | 75x75mm |
Dimension & Weight
| Monitor Size | 455x315x45mm |
| Monitor Weight | 5.4kg |
